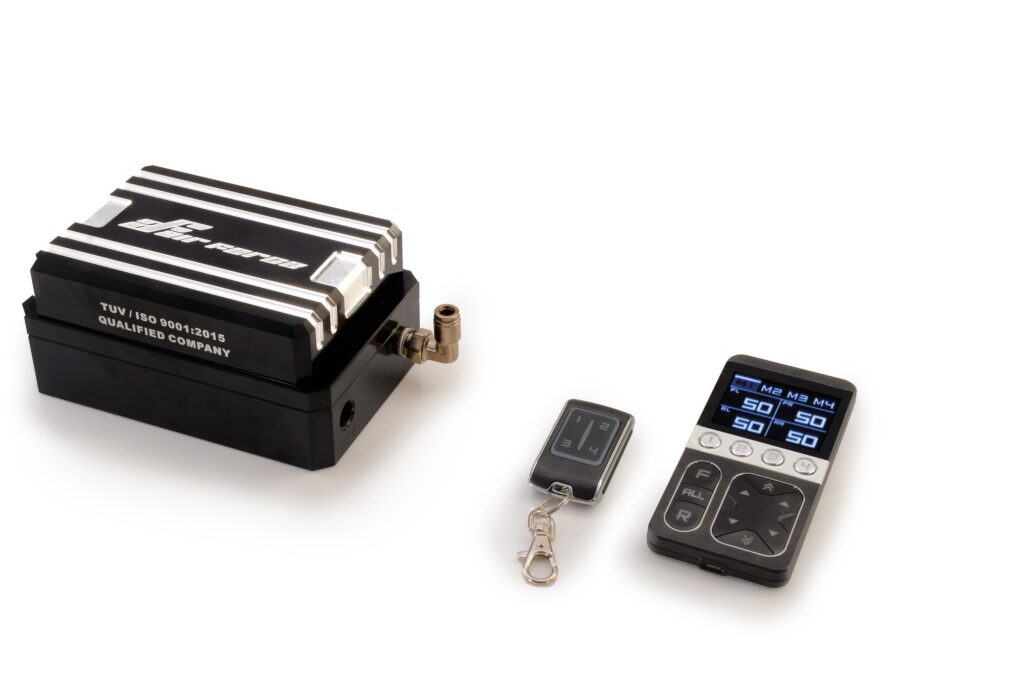

AirForce RC1 air management (2-way, wireless remote)

AirForce RC1 air management (2-way, wireless remote)

Part AF-RC1

RC1 is the handheld controller for AirForce management. Four buttons store ride heights, with button 4 reserved for the lowest setting. You can set valve speed, recall a height at key-on, and have the compressor top up the tank automatically between selectable cut-in and cut-out pressures, with overload protection built in.

£399

inc. VAT · delivery calculated at checkout

  • Built to order — the typical lead time is around 21 working days from the date of purchase to UK delivery. We confirm the lead time for your kit before you pay.
  • Delivery · Returns · Warranty

About this part

RC1 puts the system’s settings in your hand. Buttons 1 to 4 are memories: set the car at the height you want, short-press, then hold the button for two seconds until M1–M4 shows on screen. A short press shows the stored value and a second press sends the car there. Button 4 can only store the lowest height.

Speed sets how long the solenoid valves open, from 1 (slow) to 20 (fast), default 10. Key-on recalls a chosen memory when the ignition comes on. AUTO has the controller measure ride height and correct it back to the stored setting, and ADVANCE sets how often it checks, from 10 seconds to 3 minutes. Both of these need the height sensor kit, so on a pressure-based kit they do nothing.

Compressor Detect starts the compressor when tank pressure drops more than 30 PSI during a height change, and Compressor Level picks the cut-in and cut-out pressures: 100–150, 135–175 or 160–200 PSI. If the compressor runs for 30, 35 or 40 minutes the controller steps in to protect it, and after 40 minutes it enforces a 15-minute rest with a countdown on screen.

Key points

  • Four memory buttons; button 4 holds the lowest height only
  • Valve speed adjustable 1–20
  • Key-on recall of a saved height
  • AUTO and ADVANCE self-levelling with the height sensor kit
  • Compressor cut-in/cut-out: 100–150, 135–175 or 160–200 PSI
  • Overload protection at 30, 35 and 40 minutes of running

Specifications

Memories
4 (M1–M4); M4 restricted to lowest height
Speed
Solenoid valve interval 1–20, default 10
Key on
Recall memory 1/2/3/4 or off (default off); requires height sensor input
AUTO
Measures and corrects ride height; requires height sensor kit
ADVANCE
AUTO interval 10/20/30/60/120/180 s, default 60 s
Compressor Detect
On/off (default off); starts compressor after a 30 PSI drop
Compressor Level
A 100 on/150 off, B 135 on/175 off (default), C 160 on/200 off
Overload protection
Steps at 30/35/40 min running; 15 min enforced rest after the third; timer resets after 5 min idle
